Topics | Configure | Related Topics
Before You Begin |
||
|
||
To configure a direct-attached shared library |
||
1. | Display the Library and Drive Configuration window. | |
2. |
Detect the devices as described in one of the following:

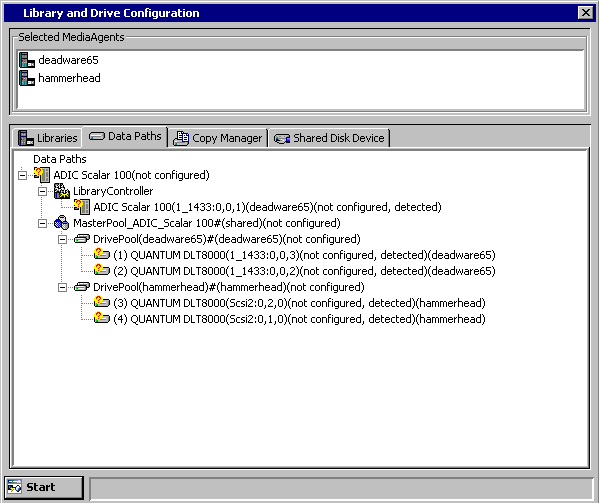

Note that the Library and Drive Configuration window displays a master drive pool (with a drive pool and the associated drives) for each of the MediaAgents sharing the library. |
|
3. | If you want to modify library properties,
right-click the library and select Properties. From the Library Properties window, you can change the following properties:
When you are satisfied with your changes, click OK. |
|
4. |
Configure the library as described in
Configure Devices.

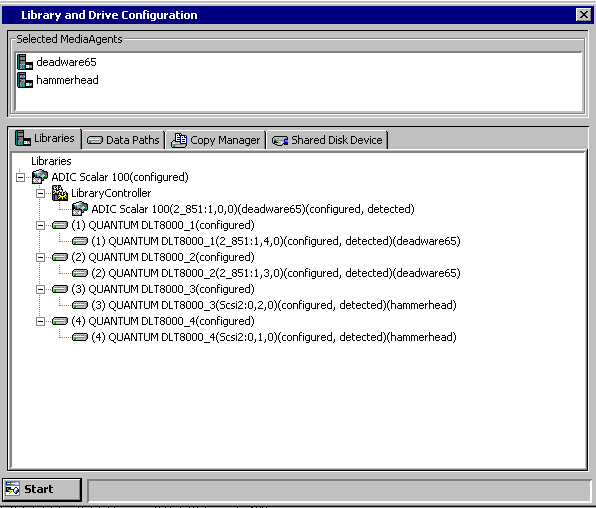

The status of the drive pools and their constituent drives changes to configured. The Library tab provides the physical view of the devices (library and drives).
|
|

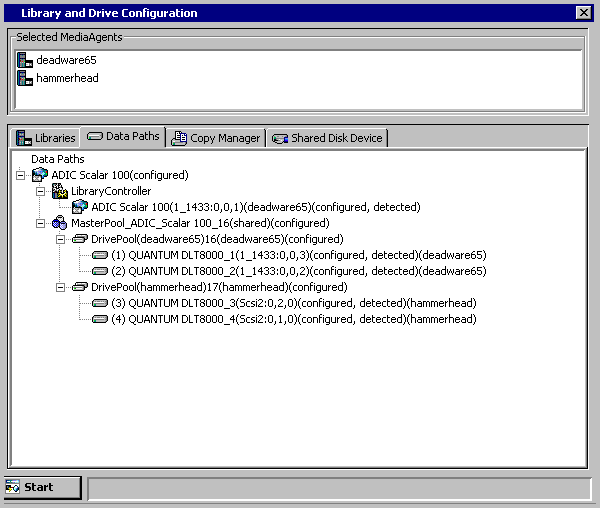

The Data Paths tab provides a logical view of the data path used to access
the devices - library, master drive pool, drive pool, drive.
|
