The Job Controller allows you to manage and monitor the following types of
jobs:
Data protection operations
Data recovery operations
Administration operations
Data Collection & Report operations in SRM
Content Indexing and Search Operations
Media Refresh operations
The Job Controller window displays all the current jobs in the CommCell. A
status bar at the bottom of the job controller shows the total amount of jobs;
the amount of jobs that are running, pending, waiting, queued and suspended; and
the high and low watermarks. The watermarks indicate the minimum and
maximum number of streams that the Job Manager can use simultaneously.
Information about a job is continually updated and available in the Job
Controller or Job History window. When a job is finished, the job stays in
the Job Controller for five minutes. Once a job is finished, more information
about that job is obtainable using the Job History.
The following job information is displayed, depending on the selected Job
History:
Job ID
A unique number allocated by the Job Manager that identifies
the data protection, data recovery, or administration operation.
Operation
The type of data protection, data recovery, or
administration operation being conducted.
Client/Client Computer
For data protection operations, the client
computer to which the backup set and subclient belong. For data recovery
operations, the computer from which the data originated.
Destination Client
The destination client to which the recovered
data will be stored.
Agent Type
The agent that is performing the operation.
(e.g., Windows 2000 File System).
Instance/Partition
The instance/partition in the client computer that
represents the database that was included in this operation.
Subclient
The subclient that was protected during the
operation. Note that a deleted subclient will have a Unix time stamp
appended to its name in cases where another subclient is currently using the
same name as the deleted subclient.
Job Type
The type of operation that is
being conducted on data.
Backup Type
The type of backup that was conducted: Differential, Full,
Incremental or Synthetic.
Failed Folders
The number of folders that were not included in
the operation.
Failed Files
The number of files that were not included in the
operation.
Storage Policy
The storage policy to which the operation is
being directed.
MediaAgent
The MediaAgent to which the operation is being
directed.
Status
The status of the operation. For job status
descriptions, see Job Status Levels
Progress
A status bar indicating its progress. The
progress bar is not visible for certain operations (e.g., data aging) or for
the initial phases of some data protection operations.
The Job Controller progress bar will not display the progress of SAP for MAXDB
backup and restore jobs accurately. This is true because Calypso
cannot detect data or objects transferred by SAP for MAXDB due to the way SAP
for MAXDB transfers these items.
Errors
Displays any errors that have occurred during
the operation, such as a hardware problem or the job has run outside of an
operation window. (See Job Errors for more
information.)
Backup Set
The backup set that was protected/recovered during the operation
and to which the subclient belongs.
Index
Displays New Index to indicate a new index
was created during the operation. If blank, a new index was not created.
Instance/Partition
The instance/partition in the client computer that
represents the database that was included in this operation.
Phase
The current phase of the operation.
The number of phases varies depending on the operation.
The date and time on the CommServe when the
operation started.
End Time
The date and time on the CommServe when the
operation was completed.
Elapsed
The duration of time consumed by the operation.
Libraries
The libraries that is being used by the
operation.
Drives/Mount Paths
The drives/mount paths that are being used by the
operation. For more information about media, see Media
Operations.
Last Update Time
The
last time the Job Manager received job updates for the operation.
Transferred
The amount of data that has been transferred
for the operation at the present time.
Estimated Completion
Time
The time that the Job Manager estimates for this job to be completed.
The estimated time will be based on time zone of the CommServe computer.
Size on Media
The total size of data that was transferred to the media
(excluding duplicated data).
The amount displayed is the compressed amount (if compression is
enabled) and includes valid
and invalid attempts of the backup jobs.
Application data that is backed up may include sparse files,
metadata, inode security data, etc. As
a result, the displayed size of the data may be greater than
expected.
If viewing from the storage policy copy level, amount displayed
may be less if job is partially copied.
Size of Application
The amount of the application data that has been
protected.
Application data that is backed up may include sparse files,
metadata, inode security data, etc. As
a result, the displayed size of the data may be greater than
expected.
If job has completed with multiple attempts, the amount
displayed may be larger.
Size of Backup
The amount of compressed data that has been protected, which includes all
application data and metadata.
Content Indexed
Displays Full, Partial, or No to indicate
whether content indexing was used for the operation. Operations
performed with older releases of the software may display Yes or
No.
Note that if a job is displayed as partially content indexed, not all
of the data protected in the job was content indexed successfully. Rerun
content indexing on this job so that the protected data is fully content
indexed.
Delay Reason
The description of the reason why the
operation may be pending, waiting, or failing.
Alert
The name of the job-based alert, if configured
for the job.
Job Initiation
The origin of the operation: the
CommCell Console (Interactive), a schedule (Scheduled),
or a third party interface (Third Party).
Maximum Number of Readers
The maximum number of readers that can be used
for the operation.
Automated Content Classification Policy
Name of the Automated Content Classification
Policy.
Legal Hold Name
The Name specified for the Legal Hold data.
Legal Hold Retention Time
The time frame for which the Legal Hold Data
will be retained.
Number of Readers in Use
The number of readers currently in use for the
operation.
Number of Objects
The total number of objects including
successful, failed and skipped.
For a Unix File System iDataAgent backup job
that includes hard links and for which the
HLINK registry key is set to
Y and the appropriate hard link updates
are applied, the
value in this field will also account for the number of hard links and
hard link groups that were backed up.
See the Service Pack
documentation for more information on hard link updates.
Restart Interval
The amount of time the Job Manager will wait
before restarting a job that has gone into a pending state. This is set in the
Job Management (Job Restarts) tab.
Max Restarts
The maximum number of times the job will be
restarted after a phase of the job has failed. This is set in the
Job Management (Job Restarts) tab.
Error Code
Error Code for job pending or job failure
reason. (See Job Errors for more information.)
Retained By
The type of retention rules defined for the
job, basic or extended. For more information, see
Data Aging.
Description
A brief description of the running job.
The Pause
and Play
buttons allow you to control how the Job Controller displays real time
information from active jobs. The Pause button stops the Job Controller
from displaying real time information collected from jobs. The play button allows the Job
Controller to display real time job updates.
To see all the columns in the Job Controller window, use the scroll bar at
the bottom of the window.
If a job has not completed successfully, the Error Code column will
display a unique code linking to available troubleshooting and knowledgebase article(s)
relevant to that error from the customer support website. These articles may include special
considerations for the type(s) of job(s) you are running, suggested workarounds
for issues, and common causes for that particular error.
If an error code pertains to more than one issue, the customer support
website will display links to all articles for which the code is relevant.
Conversely, if an error code does not have any articles associated with it, the
customer support website will display a message indicating that no articles
exist for that code.
Error codes may also be obtained from several other windows and dialog boxes, including:
The Job History windows
The Job
Summary Report
Events
Alerts
Note the following when obtaining troubleshooting articles using error codes:
The Error Code field will only contain a code if a job has not completed
successfully.
In the Job History windows and Job Summary Report, you can access
troubleshooting articles by simply click on the linked error code.
In the Events and Alerts windows, error codes do not provide direct
links to troubleshooting articles. However, you can search the customer
support website for related articles by typing the appropriate error code in
the search field.
Note that jobs which fail
Data Integrity Validation will be moved to pending status. Review the error code
and description of the pending job from the job controller to identify the
reason for failure. See
Data Integrity
Validation - Troubleshoot for troubleshooting Data Integrity validation errors.
The Job Controller window also provides a Flags column, which is
located on the left-hand side of the Job Controller window. The Flags
column displays an
icon for any running jobs that encounter one of the following scenarios:
A required media cannot be found in the library. This scenario requires
user intervention for the job to complete successfully.
The job has not sent an update (such as bytes or files received) in over
60 minutes. This scenario may or may not require user intervention; for
example, if the delay in receipt of updates is caused by insufficient
network bandwidth, the job may complete successfully once additional network
bandwidth is available. Conversely, if the delay in receipt of updates is
caused by a hardware issue, the job will not complete successfully until the
user has resolved the hardware issue.
The job is a high-priority job with a priority level of less than 100.
In order to activate this flag, the
JobHighPriorityMarkEnable entry must be configured in the
GXGlobalParam table with a value of
1. When this entry is present, all jobs
with a priority of less than 100 will be given a flag in the Job
Controller.
To change the default priority for which flags will be shown, the
JobHighPriorityMark entry can be added
and configured with the desired priority level. Note that the
JobHighPriorityMarkEnable entry must
still be present and configured.
If neither of the above scenarios are present, the Flags column will
remain empty.
To view additional details about a
particular job, right click the job in the Job Controller window and select
Detail.
The General tab of a Job Details dialog box
provides general information about the selected job, such as the subclient,
storage policy, etc.
The Progress tab of a Job Details dialog box of
the selected job provides more specific statistical information about the
selected job's current phase.
The Streams tab of a Job Details dialog box of
the selected job provides data transferred by stream on the MediaAgent the job
is using.
The Attempts tab of a Job Details dialog box
includes information on each attempt of each phase of the selected job, such as
the status of each phase of the job. Each phase has a corresponding client log
that can aid in troubleshooting data protection problems. Note that the Data Size/Transferred field amount includes metadata, and
therefore, will be larger than the actual size of the backed up data.
The Phase Details tab of a Job Details dialog box provides
information on each phase of the Information Management operations, such as
Search, Legal Hold, ERM Connector, Restore to Review Set, and Tagging.
The Retention tab of a Job Details dialog box provides the
retention information for the data protection job's storage policy. The
associated storage policy copies will be listed with their defined retention
rules. From here, you can quickly identify whether the storage policy copies are
defined with basic or extended retention rules, and the date(s) until which
the data will be retained for each storage policy copy.
For Oracle specific backup and restore jobs, you can also view the RMAN
log for the selected job in the Job Details dialog box.
The Job Controller also provides the facility to view job information using
other CommCell Console features, including:
Job Events, which can be viewed using the All Found Events
window. For more information about events, see the Event Viewer.
Log Files, which can be viewed for any active job. For more
information about viewing log files, see
Log Files.
Use the ListFilesForJob utility to generate a list of files which are backed
up during a specific job. Follow
the steps give below to create a file which contains the list of files:
Open the Command Prompt and navigate to following location:
the job id of the job for which you are generating the list.
MAName
Name of the MediaAgent which is used to perform the backup job.
Instance
Name of the instance which you have used to instal the Windows File
System iDataAgent
This is
an optional argument. If you do not specify any value, the job in
Instance001 will be used by default to generate the list of files.
ArchiveBitFlag
1 to set the Archive Bit
0 to reset the Archive Bit
This is an optional argument. If you do not specify any value, the
archive bit will not change and the file that contains the list of files
can not be deleted.
TMPDIRPATH
The directory in which you want to create the file.
This argument
is optional. If you do not specify any directory, the file will be
created in the default temporary directory.
The default temporary directory for the software is set using the
dGALAXYTEMPDIR registry key. When you install Windows File System
iDataAgent, the
dGALAXYTEMPDIR registry key gets created at the following location:
You can select a job in the Job Controller and perform a control action on
that job individually. You can also control multiple jobs simultaneously in two
ways:
Select each of the desired jobs in the Job Controller window
simultaneously, and then right-click any one of the selected jobs. You can
then select the appropriate action from the menu displayed, which will be
executed for each of the selected jobs.
All selected jobs in the Job Controller providing you have the correct
security associations
at the proper level for each job selected.
All data protection operations/data recovery operations/data collection
operations running for a
particular client or client/agent.
All data protection operations running for a particular MediaAgent.
You can perform the following actions on jobs:
Suspend
Temporarily stops a job. A suspended job is not terminated;
it can be restarted at a later time. Only preemptible jobs can be suspended.
Commit
Gracefully completes the current backup job, as
of that point-in-time. Applicable only for
Silo backup jobs. See Commit
a Job for details.
Resume
Resumes a job and returns the status to
Waiting, Pending, Queued, or Running depending on the availability of resources or
the state of the operation windows and activity control settings.
Kill
Terminates a job.
Change Priority
Change the priority of a job or a group of jobs
that are currently active. Note that the lower the priority number, the
higher priority the Job Manager gives to the job when allocating resources.
When you suspend or resume a job, a dialog box appears offering you the
ability to provide a reason for suspending or resuming a job. This reason, if
entered, will be included in the Description field of the Job Details
dialog box.
The Job Controller window displays all the current jobs in the CommCell. A
status bar at the bottom of the job controller shows the total amount of jobs;
the amount of jobs that are running, pending, waiting, queued and suspended; and
the high and low watermarks. The watermarks indicate the minimum and
maximum number of streams that the Job Manager can use simultaneously.
The high watermark has a default value of 10 for SRM Reports.
The high watermark has a default value of 100 for
WorkStation backup jobs running to one destination. You can use
the SetKeyIntoGlobalParamTbl.sql
qscript with the
JMReplicationJobActivityLevelHighWaterMark global
parameter to change the default value. For more information, see
Command Line Interface - QScripts.
The following table describes the status levels that may appear in the Job
Controller window for a particular job:
Completed
The job has completed successfully. Note that
pop-up messages for reporting job completion can be enabled or disabled
using the F12 key.
For a 1-Touch Recovery for Unix job, two jobs are
listed as completed if the job is successful. The first job is the
operating system recovery, and the second job is the data recovery.
The 1-Touch Recovery job is completed once the data recovery is
completed.
Completed With Warning
The job has completed successfully but with a
notification to the user.
Completed With One or More
Errors
The job has completed with errors.
The following administration conditions will result in the Completed With One or More
Errors status level.
Disaster Recovery Backup
During the operation, Phase 1 failed and Phase 2 completed, or Phase
1 completed and Phase 2 failed.
Data Aging
During the operation, one or more components failed, e.g.,
subclients failed to be aged or job history failed to be removed.
Install Updates
During the operation, one or more clients failed to be updated.
Offline Content Indexing
During the offline content indexing operation, one or more backup
data failed to be content indexed.
Information Management
During an information management operation, if the operation defined
in the Automated Content Classification Policy is partially successful.
The following iDataAgent-specific
conditions will result in the Completed With One or More
Errors status level.
Exchange Compliance Archiver
During a retrieve operation, one or more files failed to be retrieved.
Exchange Mailbox Archiver and Exchange Public Folder Archiver
During a recovery operation, one or more files failed to be
recovered.
Microsoft Windows File System
During a system state backup operation, one or more non-critical components
failed to be backed up.
During a file system restore operation, one or more files failed to
restore or were locked.
During a system state restore operation, one or more non-critical
components failed to be restored.
Microsoft Exchange Server
During a backup operation of a storage group assigned to a
subclient, one or more databases failed to be backed up.
During a restore operation, one or more databases failed to be restored.
Informix
During a backup operation, one or more files failed to be backed up.
Oracle, Oracle RAC
During a backup operation, one or more files failed to be backed up.
SAP for Oracle, SAP for MAXDB
During a backup operation, one or more files failed to be backed up.
SharePoint Server iDataAgent
During a backup operation, one or more elements in the subclient
content failed to be backed up.
During a restore operation, one or more elements in the
subclient content failed to be restored.
SharePoint Archiver
During a migration archiving operation, one or more elements in the subclient
content failed to be archived.
During a recovery operation, one or more elements in the subclient content failed to
be recovered.
Sybase
During a backup operation, one or more files failed to be backed up.
UNIX File System
During a backup operation, one or more files failed to be backed up.
Dangling Cleanup
A job phase has been terminated by the job manager,
and the job manager is waiting for the completion of associated processes
before killing the job phase.
Failed
The job has failed due to errors or the job has
been terminated by the job manager.
Interrupt Pending
The job manager is waiting for the completion
of associated processes before interrupting the job due to resource
contention with jobs that have a higher priority, etc.
Kill Pending
The job has been terminated by the user using
the Kill option, and the job manager is waiting
for the completion of associated processes before killing the job.
Killed
The job is terminated by the user using the
Kill option or by the Job Manager.*
Pending
The Job Manager has suspended the job due to
phase failure and will restart it without user intervention.
Queued
The job conflicted with other currently running jobs (such as multiple data
protection operations for the same subclient), and the Queue jobs if
other conflicting jobs are active option was enabled from the
General
tab of the Job Management dialog box. The Job Manager will automatically
resume the job only if the condition that caused the job to queue has
cleared.
The activity control for the job type is disabled, and the Queue jobs
if activity is disabled option was enabled from the
General
tab of the Job Management dialog box. The Job Manager will automatically
resume the job only if the condition that caused the job to queue has
cleared.
The Queue Scheduled Jobs option was enabled from the
General
tab of the Job Management dialog box.
Scheduled Jobs can be resumed manually using the Resume option or resumed automatically by disabling the
Queue Scheduled Jobs option.
The job started
within the operation window's start and end time.
The running job conflicted with
the operation window and the Allow running jobs to complete pass the
operation window option was not enabled from the General
tab of the Job Management dialog box. (This is only applicable for jobs that can be restarted. See
Restarting Jobs for more information.)
Running
The job is active and has access to the
resources it needs.
Running (Cannot be verified)
During a running operation, the
Job Alive Check failed. See
Job Alive Check Interval for more
information.
Suspend Pending
A job is suspended by a user using the Suspend
option, and the Job Manager is waiting for the completion of associated
processes before stopping the job.
Suspended
A running, waiting or pending job has been
manually stopped by a user using the Suspend option. The job will not complete until it is restarted using the Resume
option.
A job has been started in a suspended state
using the Start Suspended or
Startup in Suspended State options available
from the dialog box of the job that was initiated. Restore jobs from Search
Console can be started in the suspended state using the Start End
User restores in suspended state and Start Compliance restores in
suspended state options in the Browse/Recover Option Dialog box in
the Control Panel.
System Kill Pending
The job has been terminated by the Job Manager*, and the
Job Manager is waiting
for the completion of associated processes before killing the job.
Waiting
The job is active, waiting for resources (e.g.,
media or drive) to become available or for internal processes to start.
Destination Client
The restore client machine name. This allows
users to verify if the restore data is being written to the correct
machine/target.
*The Job Manager will terminate a job when:
The number of job retries has exceeded the value set in the
Job Retry
dialog box.
The total running time has exceeded the amount of time set in the Job
Retry dialog box.
Conflicting jobs overlap, i.e., a new backup job is initiated for the
same subclient as a job that is currently running.
The Job
Manager will only terminate a conflicting job if the new backup job encompasses
the earlier job and if the earlier started job has yet to
transfer any data to media. If these conditions exist, then the
earlier job will be killed by the system and
replaced by the newer job. To be more encompassing indicates that a FULL
backup can kill jobs such as incrementals, differentials and other fulls;
however,
incrementals will not be able to kill fulls. If the current job has already
started transferring data, then the normal queue rules for the new job will
apply.
The status of a job and the preemptibility of the phase of the job in the Job
Controller determines the actions (Kill, Suspend, or Resume) that you can
perform. The following table describes the status of a job after an action has
been performed on it:
Original Status
Actions Available
New Status
Running
Suspend
Suspended
Kill
Killed
Waiting
Suspend
Suspended
Kill
Killed
Interrupt Pending
N/A
N/A
Pending
Suspend
Suspended
Resume
Returns to original state, resources and other
conditions permitting
Kill
Killed
Suspend Pending
N/A
N/A
Queued
Suspend
Suspended
Resume (scheduled jobs only)
Changes into a state of an active job, resources and other
conditions permitting
You can control the overall status of a backup job by defining
error decision rules. You can define multiple decision rules for an agent based on the following
criteria:
File path pattern
Error codes
Decision to mark the job with a specific status
The available job status you can select from the decision rule allows you to:
(the list below also reflects the job status priority used by the decision
rules)
Mark the Job as Failed
Mark the Job as Completed with Errors
Mark the Job as Complete
Once created, the agent applies the error decision rules at the end of the
backup operation. During this process, the agent traverses the failures.cvf
file to match the decision rules based on the priority of the rules. The failures.cvf
file includes information of all the backup files that failed along with their
associated error code. When a file and its error codes match a rule, the file is marked with the defined status,
and the agent continues to traverse the failures.cvf
file. However, if a file matches a rule that will mark the job as failed, the

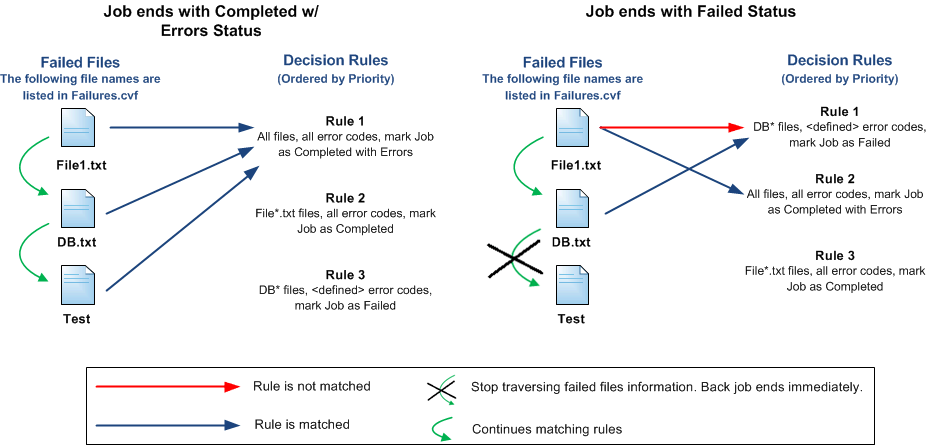

backup job ends immediately with the failed status. See the graph on the right
to understand the process.
Here are some examples that show when it is useful to define
error decision rules:
Example 1
You create a decision rule to ignore any error found in temporary files.
File Pattern: C:\temp\*
System Error Code: All Error Codes
On error mark Job as: Complete
Example 2
You create a decision rule to mark the backup job as failed when an error is
found in system data files.

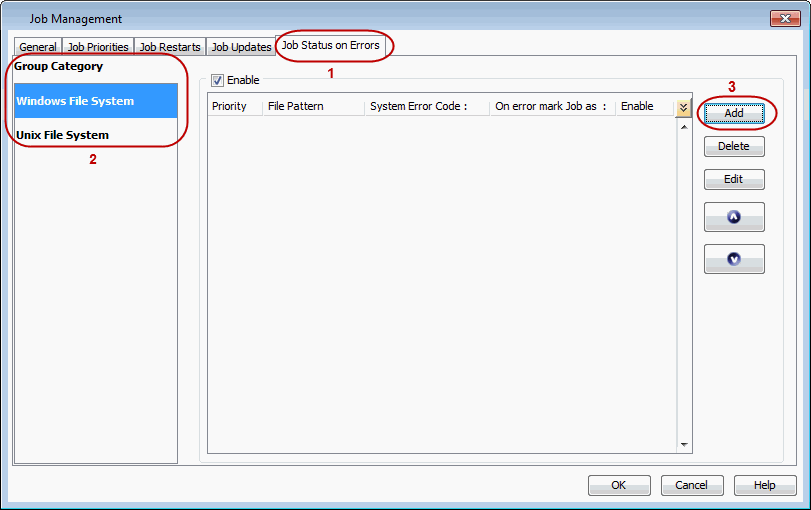

From the Group Category pane, select the agent to add the
decision rules for.
Click Add.
3.
By default, in the
Add Job Error Decision Rule dialog box,
all file patterns are considered for the new decision rule.
You can define a file pattern by clearing the All File Pattern
checkbox and entering a specific file pattern in the User Defined
Pattern field.
From the System Error Code area:
If you want to include all errors, click All Error Codes.
If you want to define a specific set of error codes, enter the
error code range.
Select the job status from the On Error mark Job as drop-down list to
update the job if the rule is matched.
For a SnapProtect backup job, if a decision rule with the
"Completed with Errors" status is matched, the job status will
be marked as "Complete".
Click OK.
4.
Click OK.
You can add more error decision rules for the
selected agent, or choose a different agent to add new decision rules.
You can
also set the priority for the decision rules you created by moving a
rule up (higher priority) or down (lower priority) using the arrow
buttons.
You can filter the jobs that are displayed in the Job Controller by creating
a job filter from the
Filter
Definition dialog box. You can filter by Data Protection, Data Recovery,
Data Collection (for SRM jobs), and
Administration operations. The filter can also be based on an active job
for a particular CommCell entity.
CommCell Administrators can utilize filters created by all users. All
other users can only utilize the filters that they create. If a user
account is deleted, their filters will automatically be deleted as well.
If a user is not part of the View All
user group, then that user will not see CommCell objects for which the user's
member user group(s) does not have associations. Furthermore, users will not be
able to view the Job Controller or Event Viewer details associated with the
CommCell objects for which they do not have permissions. Note that a user will
not be able to view these CommCell objects upon logging onto the CommCell
Console after the restrictions have been set.
For the File Archiver Agents, multiple stub recoveries
from disk media or tape are submitted to the Job Controller as one job. For
such stub recoveries, only one job will display in the Job Controller.
In a preemptible phase, the job can be
interrupted by the Job Manager or suspended by the user and then restarted
without having to start the phase over again from the beginning. Preemption
is defined by the Job Manager at each phase of a job. A File System backup
phase is one example of a preemptible phase; the Job Manager can interrupt this phase
when resource contention occurs with a higher priority job. You can also suspend this
phase in progress and resume it later.
Non-preemptible Phase
A non-preemptible phase is one that cannot be interrupted by the Job Manager
or suspended by the user. It can only run to completion, be killed by
administrative action, or be failed by the system. For example, the data recovery
operations of database agents are non-preemptible.
Both preemptible and non-preemptible jobs can also be defined in terms of their restartability;
preemptible jobs are always restartable. In addition, even jobs that are not
preemptible might fail to start and be in a "waiting" state; these are
restartable as well. For more specific information on this topic, see
Job Restart.
You can specify that certain operations will
preempt other operations based on their job priority, in cases where multiple jobs are
competing for media and drives.
If a running job is preemptible, the Job Manager
can interrupt the running
job and allocate the resources to a higher-priority job. (The interrupted
job enters a waiting state and resumes when the resources it needs becomes
available.)
You can:
Allow restores and browse backup data index restores to preempt other jobs
of lower priority such as backups, synthetic fulls, and auxiliary copy
operations.
Allow backups (including Disaster Recovery backups) to preempt other
backups of lower priority.
Allow backups (including Disaster Recovery backups) to preempt auxiliary
copy jobs of lower priority.
The following table provides information on the Status of the job in the Job Controller window and the Reason for job delay displayed in the Job Details
dialog box when a job is preempted. In addition, a brief explanation on what
happens when a job is preempted is also provided.
Job
Status in the Job Controller
Reason for Job Delay
Additional Information
Data Protection Operation
Interrupt Pending
No Job Delay
Once interrupted, job does not hold on to
resources and returns to Waiting status. The
job retries for resources. (The Status of the job in the
Job Controller window and messages in the Reason for job delay
are discussed in
What Happens When
There are no Resources for a Job.)
Waiting
No resources available
Data Recovery Operations (for File
System-like agents)
Interrupt Pending
No Job Delay
Once interrupted, job does not hold on to
resources and returns to Waiting status. The
job retries for resources. (The Status of the job in the
Job Controller window and messages in the Reason for job delay
are discussed in
What Happens When
There are no Resources for a Job.)
Waiting
No resources available
Data Recovery Operation (for Database-like
agents)
Not
Preemptible
Index Restore (Browse Backup Data)
Not Preemptible
Auxiliary Copy
Interrupt Pending
No Job Delay
Once interrupted, job does not hold on to
resources and returns to Waiting status. The
job retries for resources. (The Status of the job in the
Job Controller window and messages in the Reason for job delay
are discussed in
What Happens When
There are no Resources for a Job.)
Waiting
No resources available
Synthetic Full
Interrupt Pending
No Job Delay
Once interrupted, job does not hold on to
resources and returns to Waiting status. The
job retries for resources. (The Status of the job in the
Job Controller window and messages in the Reason for job delay
are discussed in
What Happens When
There are no Resources for a Job.)
Waiting
No resources available
Media Refresh
Waiting
No resources available
Once interrupted, job does not hold on to
resources and returns to Waiting status.
The job retries for resources.
The higher priority job that is doing the
preemption for resources will display the Reason for Job delay as
follows:
For the Image Level and Image Level ProxyHost
iDataAgents, if a backup job is
suspended either by the user or the Job Controller during metadata
collection, the job will automatically resume from the scan phase.
For Oracle and Oracle RAC iDataAgents, selective online full
backup jobs are not preemptable nor restartable. Similarly, oracle log
backup jobs that are submitted during selective online full backups (data
phase) also cannot be preempted nor restarted.
Restartable jobs can be restarted either by a user or automatically
by the Job Manager. Job Restartability can be configured in the Job Management
Control Panel; restartability
can be turned on or off, the maximum number of restart attempts can be specified,
and the time interval between each restart attempt can be configured. These settings
are for the entire CommCell, so that all jobs in the CommCell of a selected type
will behave according to the Job Restart settings you have specified.
Both preemptible and non-preemptible
jobs can be restartable; preemptible jobs are always restartable after they
are suspended; jobs that are not preemptible might fail to start and be in a "waiting"
state and can be restartable as well. Additional insight about jobs that fail to
start can be gained from reviewing
What Happens When
There are no Resources for a Job.
The following types of operations can be restarted, if so configured:
Auxiliary Copy
Data Aging
Data Protection operations of indexing-based, file system-like agents, and
certain database-like agents**
Data Recovery operations of indexing-based, file system-like agents**
Disaster Recovery backup
Erase Stubs (a job-based setting is available)
Online and Offline Content Indexing jobs
Data Collection (for SRM Agents only)
Media Refresh

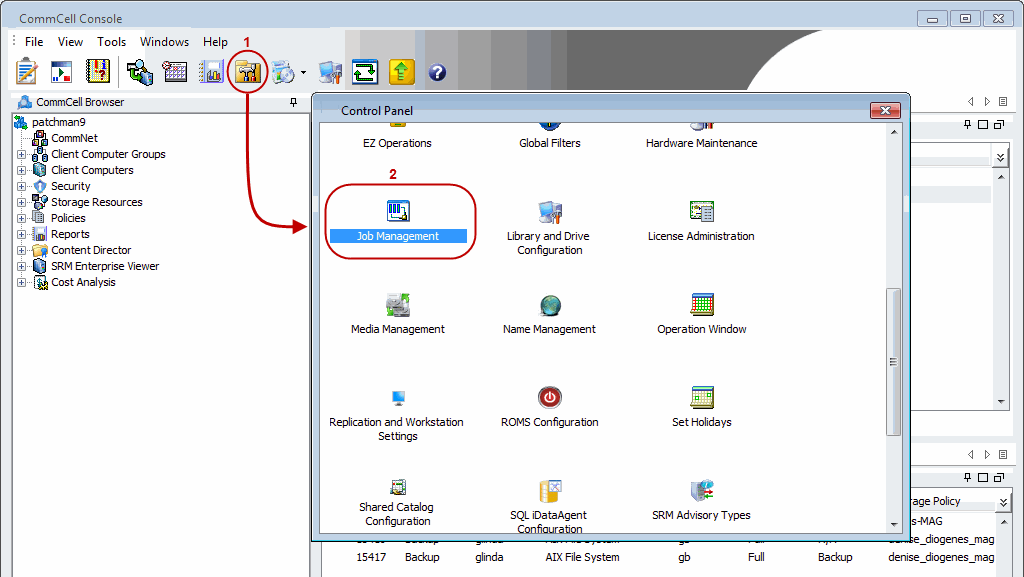

The
Job Restarts
tab in Job Management Control Panel lists all agents that can be configured
for restartability for data protection, data collection and data recovery
operations. For more information see,
Specify Job
Restartability for the CommCell.
For a specific job, you can override one of these settings, the maximum number
of restart attempts, by specifying the Number of Retries in the
Job Retry tab of
the job initiation dialog box for that particular job. See
How to Configure Job Restarts for
more specific direction on this.
In all cases, whether the Max Restarts setting is used in the Job Management
Control Panel, or the Number of Retries setting in the Job Retry tab, once the maximum number of retries has been reached, if the job
has still not restarted successfully, the Job Manager will kill the job.
The job-based setting will have no affect unless restartability has been
turned on in the Job Management Control Panel.
You can not configure the interval between restart attempts for an individual
job, only the number of attempted restarts.
Data Aging restartability can only be set in the Job Management Control
Panel; you cannot set it in the
Job Retry tab
of the job initiation dialog box for that particular job.
The restartability of Unix raw partition backup jobs either manually or
by the system is not supported. Therefore, you should run such jobs under high
priority.
Data Protection/Data Collection Jobs that enter a Running (Cannot be verified)
job state during a temporary network or CommServe service outage will not be
restarted. These jobs do not enter a pending state; they will continue,
without interruption, when the network or CommServe services become
available. For more information, see
Fault Tolerance.
Restarting an Oracle On Demand backup job for multiple scripts for the same
instance will cause the instance, whose backup was interrupted, to be backed up
again from the beginning of the script which was running. Because of this restart behavior, if the archive files for that instance were successfully backed up before the restart, they will be backed up again after the restart. As a result, Job Manager may count the data size of archive files twice for the instance that the Oracle On Demand backup job was restarted from. Therefore, the size of data reported as backed up for this job (in the Job Details and Backup Job History) will reflect the duplicate size of the archive files that were backed up twice for that instance.
The scripts should be updated to prevent this behavior before resuming the job.
If a data management job for the DB2 DPF iDataAgent goes to a pending state, and if the
job has completed on some of the nodes, the restart option will start the job on
all the nodes unless the
sBKPRESTARTFAILEDNODESTimeOut registry key is set appropriately.
For Agents that support the capability, to override the CommCell's Max Restart setting
for a particular job, you can specify the Number of Retries in the Job Retry
tab of the job configuration dialog box for the following types of jobs:
Job Name
How To Configure Job Restarts
Notes
Auxiliary Copy
In the Auxiliary Copy dialog,
click Advanced,
then select the Job Retry tab and specify Number of Retries.
QR Volume Creation restartability is only supported on Windows platforms. See Create
a QR Volume for
more information.
Single Volume Subclient
The Quick Recovery Agent
maintains a restart string during the Volume Creation (copying) phase of full and incremental copy jobs to keep track of the progress made on each volume being copied. This
restart string is updated on the CommServe database every time 1 GB of data is copied per volume. If a job is resumed from a suspended or pending state, this
restart string will be retrieved and used to identify the location in the volume from where to resume the copying. For example, a job was suspended with 2.8
GB of the data copied for a particular volume; since the restart string on the volume was last updated when 2 GB completed copying, the job resumed from that
point.
Multi-Volume Subclient
In the QR
Volume Creation phase, volumes are copied sequentially (i.e.,
not in parallel). This affects job restartability behavior for
a multi-volume subclient. When a QR Volume Creation job is
interrupted (suspended or pending), some of the volumes in the
subclient may be completely copied while others may not be copied yet at all. If
the job is restarted (either manually or automatically), the
behavior toward each volume in the subclient will depend on the
condition of the volume at the time of job interruption. Refer
to the following table for the expected behavior (for each
volume) when resuming an interrupted QR Volume Creation job for
a multi-volume subclient.
Volume Condition at the Time of Job Interruption
Behavior when Job Restarts
volume was successfully copied
The Quick Recovery Agent copies any
changes to the volume that occurred after the starting point of the
original job up to the time of the restart.
For example: A job was initiated at 2:00 P.M. At 2:30 P.M., you
suspended the job. This job was suspended in the QR Volume Creation
(copying) phase, after the volume was successfully copied. At 3:00
P.M. you restarted the job. Upon the resume, the Quick
Recovery Agent copied the changes made to the volume from 2:00
to 3:00 P.M.
volume was partially copied
The Quick Recovery Agent runs the
full or incremental copy, and then copies any changes to the volume
that occurred after the starting point of the original job up to the
time of the restart.
For example: A job was initiated at 2:00 P.M. At 2:30 P.M., you
suspended the job. This job was suspended in the QR Volume Creation
(copying) phase, during the copying of the volume. At 3:00 P.M. you
restarted the job. Upon the resume, the Quick Recovery Agent
ran the initial copy
job and then copied the changes made to the volume from 2:00 to 3:00
P.M.
volume was not yet copied
If it’s a full copy,
the Quick Recovery Agent runs a normal full copy.
For example: A job was initiated at 2:00 P.M. At 2:02 P.M., you
suspended the job. This job was suspended in the QR Volume Creation
(copying) phase, before it copied any parts of the volume. At 3:00
P.M. you restarted the job. Upon the resume, the Quick
Recovery Agent ran a full copy job, copying all the data in the
volume up to 3:00 P.M.
If it’s an incremental copy, the Quick Recovery Agent copies any changes that the original incremental would have copied as
well any changes to the volume that occurred after the starting
point of the original incremental copy job up to the time of the
restart.
For example: A job was initiated at 2:00 P.M. At 2:02 P.M., you
suspended the job. This job was suspended in the QR Volume Creation
(copying) phase, before it copied any parts of the volume. At 3:00
P.M. you restarted the job. Upon the resume, the Quick
Recovery Agent copied the data that the original incremental copy
would have copied, as well as the changes made to the volume from
2:00 to 3:00 P.M.
The Job Initiation dialog box provides several configuration options for
retrying jobs, including:
Total Running Time - The maximum elapsed time, in hours and
minutes, from the time that the job is created. When the specified maximum
elapsed time is reached, as long as the job is in the "Running" state, it
will continue; if the job is not in the "Running" state when the specified
time is reached, Job Manager will kill the job.
Number of Retries - The number of times that Job Manager will
attempt to restart the job. Once the maximum number of retry attempts has
been reached, if the job has still not restarted successfully, Job Manager
will kill the job. Note that this job-based setting will not be valid if
restartability has been turned off in the Job Management Control Panel.
Kill Running Jobs When Total Running Time Expires - Option to
kill the job when the specified Total Running Time has elapsed, even if its
state is "Running". This option is available only if you have specified a
Total Running Time.
If necessary, you can resubmit a job from the job history windows. This is
useful if a job has failed, and you want to run it again. This removes the need
to reconfigure a job with the same options. You can resubmit the same job
directly from the job history windows. Once you resubmit the job, you will also
have the ability to edit the schedule pattern (e.g., daily, weekly, monthly,
etc.) and the job options, (e.g., if it is a schedule for a backup job, then the
job options would be the the type of backup, full, differential, etc.).
The Job Results directory stores the job results files from backup and
restore operations of a client. The following sections describe the steps to
configure this directory.
Use the steps below to calculate the required space for the Job Results directory:
Size Values
How to Calculate
Example
Step 1: For backup jobs,
identify the value for the directory size of
the subclients.
6 * (number of files) * (subclient
average filename size)
Assume you have the following for all
your subclients:
2000 files like /dir1/dir2/filename1. The filename size of
these files is 20.
1000 files like /dir1/dir2/dir3/filename2. The filename size
of these files is 25.
Using the values above, you can find that:
the number of files is 3000
the subclient average filename size is
(20*2000 +
1000*25)/3000 = 21.67
So, you can conclude that the directory size of
the subclients is:
6*3000*21.67 = 390060 bytes = 0.372 MB
Step 2: For restore jobs,
identify the value for the average size of
a restore job.
1.5 * (number of restore files) *
(average filename size)
Assume you have the following;
1500 restore files like /dir1/dir2/filename1. The filename
size of these files is 20.
1000 restore files like /dir1/dir2/dir3/filename2. The
filename size of these files is 25.
Using the values above, you can find that:
the number of restore files is 2500
the average filename size is
(20*1500 + 1000*25)/2500 = 22
So, you can conclude that the average size of
a restore job is:
1.5*2500*22 = 82500 bytes = 0.079 MB
Step 3: For each subclient
configured for SnapProtect operations, identify the value for the size of the snapshot copy job.
7 * (number of files) * (subclient average filename size)
Assume you have the following for all
your SnapProtect subclients:
1000 files like /dir1/filename1. The filename size of these
files is 15.
500 files like /dir1/dir2/filename2. The filename size of
these files is 20.
Using the values above, you can find that:
the number of files is 1500
the subclient average filename size is
(15*1000 +
500*20)/1500 = 16.67
So, you can conclude that the directory size of
the subclients is:
7*1500*16.67 = 175035 bytes = 0.167 MB
Step 4: If using deduplication, identify the value for
the size of the Source Side Database.
This value is controlled from the Client Side Deduplication tab of
the client properties in the CommCell Console. The default size is 4 GB.
Assuming the default size is being
used, then 4 GB are 4096 MB.
Step 5: Using the size values identified in
the previous steps, obtain the required space for the Job Results
Directory.
directory size of the subclients + (average size of
a restore job * A) + (size of the snapshot copy job * B) + size of the Source
Side Database
where A is the number of restore results to
be stored for longer time and B is the number of
snapshot copy jobs to be run.
Assume you plan to have:
20 restore results to be stored for longer time.
10 snapshot copy jobs to be run.
Using the size values from the examples above, the required space
is:
0.372 + 0.079*20 + 0.167*10 + 4096 = 4099.62 MB
The minimum space required for the Job Results directory is the size value
obtained from Step 1. If using SnapProtect backups, the minimum space
required is the addition of Step 1 and Step 3.
UNC paths are supported for job results directory by the Exchange Database
iDataAgent 2007 and above when configured in Cluster
Continuous Replicator environment. The Windows File System
iDataAgent is also supported when
configured in this environment.
When assigning UNC paths, the designated directory must be ONE level
below the directory which is shared for this purpose. Examples:
\\machine1\<share_name>\job_results\ is shared. Then
specify \\machine1\<share_name>\job_results\job_results_1as the job results directory.
\\machine1\<share_name>\job_results\ is shared. Then
specifying \\machine1\<share_name>\job_results as the job
results directory is not supported.
On a Windows client, you need to specify a Windows User Account with the
appropriate privileges to access the job results directory.
User impersonation requires that the specified user have write permissions to
the product installation folders; otherwise, the user impersonation account may
not take effect. This is especially true if the associated computer is not part
of a domain and if the user is not a domain user. Additionally, users will need
full permissions (registry rights) to the following registry key:
\\HKEY_LOCAL_MACINE\SOFTWARE\CommVault Systems.
In addition, if UNC paths are used for job results and subclient contents are
specified as UNC paths, the user impersonation account used for the job results
directory must have access to both paths.
For the File System iDataAgent, the user impersonation occurs only once; therefore, the user
impersonation account specified for the job results directory will take
precedence and will be used to back up the contents of the UNC path included in
the subclient content.
For the Virtual Server iDataAgent,
the user impersonation account specified for the job results directory will take
precedence and will be used to backup and restore data from a virtual machine.
This may result into file access related issues during the backup. Therefore, it
is recommended to use a local folder on the client computer as the job results
directory.
For the Exchange iDataAgent, the
account must have the following:
The account must have the Remote Access rights to the UNC path.
Remote
Access can be granted by right-clicking My Computer | Properties
| Remote | Select Remote Users | Add and then
specifying the domain\user in the Select User dialog box in the
computer hosting the UNC path.
In addition, the Exchange Administrator account specified in the Agent
Properties dialog box must have write access permissions to the share used
for job results.
Follow the steps below to change the user account for accessing the Job Results
directory for the
client:
From the CommCell Browser, right-click the icon of the client computer whose
job results path user account you want to change, and then click Properties.
From the
Job Configuration
tab of the Client Computer Properties dialog box, click User Name/Password.
In the
Change
User Account dialog box, enter the appropriate User Impersonation
account information.
From the CommCell Browser, right-click the icon of the client computer whose
job results path you want to change, and then click Properties.
From the
Job Configuration
tab of the Client Computer Properties dialog box, if necessary or
desired, click User Name/Password to establish or change the
Impersonate User account to access the Job Results Directory. If you do
this, click OK once you have administered the account.
From the
Job Configuration
tab, type a new job results
path in the Job results path field.
You can also click Browse to browse to a new job results path from
the Browse for Job Result Path dialog box. Click OK.
From the CommCell Browser, right-click the icon of the client computer whose
job results retention criteria you want to change, and then click Properties.
From the
Job
Configuration
tab of the Client Computer Properties dialog box, select the number
of days job results should be pruned from the Prune job resultsafter
field.
Select a disk capacity after which job results should be pruned from the Prune
job results when disk capacity reaches field.
The mobile application allows you to manage and monitor jobs remotely from
any mobile device with internet connection. This application is available on
Apple and Android devices. For more information, see the Overview page for this
application.
The occurrence of a hardware failure during a restore operation puts the job
in a device wait state for indefinite time. If a hardware failure occurs, you
need to kill the job and start it at a later time when the hardware is
available.
When a hardware failure occurs
during a restore, the restore job will go into a device wait state indefinitely
and will need to be killed.
The Job Alive Check Interval option within the
General tab of the Job Management dialog box allows you to
specify the time interval by which the Job Manager will check active jobs to
determine if they are still running.
The Job Update Interval allows you to view or modify how often information
must be updated for data protection and data recovery operations in the Job
Details.
The
Job Updates
tab of the
Job Management dialog box displays the:
Available Agent Types
Protection Time (in Minutes)
Recovery Time (in Minutes)
It also includes:
Update interval time for the ContinuousDataReplicator.
At the time of job initiation, you can determine the total amount of time a job
can run before it is killed by the Job Manager. The configurable parameters for
Job running time allow you to control the following:
Enable Total Running Time
The maximum elapsed time, in hours and minutes, from the time that the job is
created. When the specified maximum elapsed time is reached, as long as the job
is in the "Running" state, it will continue; if the job is not in the "Running"
state when the specified time is reached, Job Manager will kill the job.
Example: Total Running Time for a job
is specified as 1 hour.
If the job is still running at the 1 hour point, it will continue to
run.
If the job is still running at the 1 hour point, but 30 minutes later
you suspend the job, Job Manager will kill the job.
If the job begins running, and 15 minutes later is suspended and left
in that state, 45 minutes later (when the specified Total Running Time of
1 hour has elapsed) Job Manager will kill the job.
If the job is started in the suspended state and left in that state,
1 hour later (when the specified Total Running Time of 1 hour has elapsed)
Job Manager will kill the job.
Kill Running Jobs When Total Running Time Expires
Option to kill the job when the specified Total Running Time has elapsed, even
if its state is "Running". This option is available only if you have specified a
Total Running Time.
You can configure the Total Running Time and whether to Kill running jobs when total running time expires in the
Job Retry
tab of the job initiation dialog box for the following types of jobs:
For a Data Aging job, see
Data Aging.
In the Data Aging dialog, select the Job Retry tab.
For a Data Protection operation, in the Backup Options or Archive Options dialog, click Advanced, then select the Job
Retry tab. Refer to information
specific to your Agent, beginning with the
Archive,
Backup Data, or
Migration Archiving page.
For an Erase Stubs job for Exchange Mailbox Archiver, see
Erase
Stubs.
In the Erase Stubs selected for deletion in Outlook dialog, select the Job Retry
tab.
Setting jobs to be queued allows a job that would otherwise fail to remain in
the Job Controller in a Queued state, i.e., waiting. Once the
condition that
caused the job to be queued clears, the Job Manager will automatically resume
the job. Jobs can be queued if:
they conflict with other currently running jobs (such
as multiple data protection operations for the same subclient).
the activity control for the job type is disabled.
You can also set scheduled jobs to be queued. If jobs are scheduled and the
Queue Scheduled Jobs option is
enabled, these jobs will start in the Job Controller in a Queued state at their scheduled time. These jobs can
be manually resumed or, if the Queue Scheduled Jobs option is
disabled, these jobs will resume automatically. Selecting this option
is especially useful during times of maintenance. Rather than suspend each
job manually after it has started, you can enable the Queue Scheduled Jobs
option, which will start all the scheduled jobs in the Job Controller in a
Queued state. Once you have completed the maintenance, you can
manually resume specific scheduled jobs, or simply deselect the Queue Scheduled Jobs
option to automatically resume all the scheduled jobs.
The following types of jobs can be queued:
Data Protection
Data Recovery
Data Collection
Administration Operations
You can set the jobs to be queued from the
General tab of the Job Management dialog
box. The following types of jobs can be queued:
Jobs that are conflicting with other active jobs.
Jobs that cannot run because activity control for the job type(s) is
disabled.
The first NetWare File System backup run after having selected the
backup set option Decompress Data Before Backup is converted to
a full backup for all subclients that belong to that backup set.
Workstation Backup Agent
After an ungraceful shutdown of the source client computer.
Each job requires certain resources for its successful completion. Absence of
these resources has different impact on different type of jobs. The following
table discusses the resources required by each job, the status of the job in the
Job Controller window when there are no resources and the corresponding examples
of the Reason for job delay displayed in the Job Details dialog box. In
addition, a brief explanation on what happens when a job does not have the
required resources is also provided.
By default the Bull Calypso Media
& Library Manager service on the CommServe cleans up any media and
drive reservation that is held by a job which failed to release the
resource when it was abruptly terminated, every 1440 minutes. You can modify
the frequency using the nRESOURCERELEASEINTERVALMIN
registry key.
If the job encounters resource contention while
reserving the source media, (Example 2) it retries every 20 minutes and a
maximum of 144 times to obtain
the source media.
Holds on to the 2 drives and destination media
as long as it is not interrupted and as long as the source media is
available.
If the job encounters resource contention
while reserving the source media, (Example 2) it retries every20 minutes and
a maximum of 144 times to obtain
the source media.
Holds on to the 2 drives and destination media
as long as it is not interrupted.
and Play
buttons allow you to control how the Job Controller displays real time
information from active jobs. The Pause button stops the Job Controller
from displaying real time information collected from jobs. The play button allows the Job
Controller to display real time job updates.
