Review
the following requirements before setting up the primary and standby CommServe:Setting up the Primary CommServe
Setting up the Standby CommServe
Setting up the Standby CommServe Database
Switching the CommServe from Primary to Standby in Case of failures
Switching the CommServe Back From Standby to Primary When the Failure Condition is Cleared

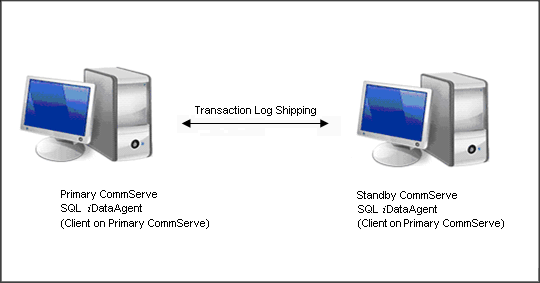

A standby CommServe can be built to maintain an up-to-date copy of the Primary CommServe to minimize disruption and down time due to the failure of the primary CommServe. Note SRM Server data cannot be protected using log shipping.
Review
the following requirements before setting up the primary and standby CommServe:
Setup the primary CommServe by installing the CommServe and the SQL Server iDataAgent software. (See Setting up the Primary CommServe for more information.)
Setup the standby CommServe computer by installing the CommServe software. However, the SQL Server iDataAgent software must be installed as a client of the primary CommServe. (See Setting up the Standby CommServe for more information.)
The standby CommServe must have two hostnames as
follows:
|
See Licensing and Disaster Recovery for more information.
One each for the primary and standby CommServe.
Setting up the Primary CommServe |
||
| 1. | Install the CommServe software on the primary CommServe
computer. The primary CommServe must be setup using the Dual IP license. (See Licensing and Disaster Recovery for more information.) In order to run transaction log backups, both the Primary and Standby CommServe need to be set to FULL Recovery model. |
See Deployment
- CommServe for more information
on installing the CommServe software. See Set Full Recovery Model for more information about setting the CommServe to Full Recovery Model. |
| 2. | Install the SQL Server iDataAgent on the primary CommServe. | See Getting Started - Microsoft SQL Server Deployment for more information on installing the SQL Server iDataAgent. |
Setting up the Standby CommServe |
||
| 3. | Install the CommServe software on the standby CommServe
computer.
|
See Deployment - CommServe for more information on installing the CommServe software |
| 4. | Stop all Services on the standby CommServe. You cannot have services running on both the primary and standby computers. In order to run transaction log backups, both the Primary and Standby CommServe need to be set to FULL Recovery model. |
See Stop Services on Windows for step-by-step instructions.
See Set Full Recovery Model for more information about setting the CommServe to Full Recovery Model. |
| 5. | Install the SQL Server
iDataAgent software as a client of the primary CommServe. This
can be done as follows:
|
See
Getting Started - Microsoft SQL Server Deployment
for more information on installing the SQL Server
iDataAgent.. See Also: Multi Instancing for more information on the bAllowMultiInstances registry key. |
Setting up the Standby CommServe Database |
||
| 6. | Using the SQL Server iDataAgent, perform a full backup of the SQL database in the primary CommServe and restore it to the SQL Server in the standby CommServe. The database must be in the standby state after the restore. | See
Getting Started -
Microsoft SQL Server Backup
for step-by-step instructions on performing a full backup using the SQL
Server iDataAgent. See Getting Started - Microsoft SQL Server Restore for step-by-step instructions on restoring data using the SQL Server iDataAgent. |
| 7. | Using the SQL Server iDataAgent,
schedule frequent backups of the Transaction Logs in the primary server.
It is recommended to schedule backups every 30 minutes. Schedule a restore of the transaction log to be run after each backup. The database must be in the standby state after every Transaction Log restore. NOTES
|
See
Start a Transaction
Log Backup for for step-by-step instructions. See Also: Replication Using Warm Database Restore for more information on the performing this type of restore. |
| 1. | You can write a script that automatically detects and runs
the following steps, when the primary CommServe goes down. For manual fail-over, you would need to perform following actions on the Primary CommServe which would still be up.
|
For step-by-step instructions, see Enable or Disable Operations. See Stop Services on Windows for step-by-step instructions. |
| 2. | On the standby CommServe, bring the CommServe database
to regular mode from standby mode. To bring the Standby CommServe services up in case of disaster in primary site we need to change the CommServ database in the standby site from Standby/read-only to full recovery mode. This can be accomplished by running the following command: Use master ALTER DATABASE [CommServ] SET ONLINE RESTORE DATABASE [CommServ] WITH RECOVERY |
See the SQL Server Management Studio help for information on bringing the database online. |
| 3. | Navigate to the base directory and run the CommserveDisasterRecoveryGUI
to perform the name change. This will change the CommServe host name from
the Primary CommServe name to the StandBy CommServe name. On the Standby CommServe, start the services. |
See start Start Services on Windows for step-by-step instructions. |
| 4. | On the standby CommServe, change the name in the database
using the command line or using the Name Management option from the
Control Panel. Alternatively, you can update the DNS entry to change IP address of the primary computer to point to the standby computer, and then use the ipconfig /flushdns command to update the clients of the CommServe name change. |
See
Changing the CommServe Name for instructions. See Change the Name of CommServe in a multiple MediaAgents/Clients for set-by-step instructions to inform the clients of the CommServe Hostname change. |
| 5. | Disable the scheduled backup job for the SQL Server iDataAgent in the primary CommServe and kill any jobs that are already running. |
| 1. | Stop all running jobs and and disable all activity from the CommCell Console. | See Enable or Disable Operations for step-by-step instructions. |
| 2. | Stop all services on the standby CommServe. | See Stop Services on Windows for step-by-step instructions. |
| 3. | In the standby CommServe, using the SQL Server Management Studio, backup the CommServ database and create a .dmp file. |
See the SQL Server Management Studio help for
information on backing up a database. Alternatively you can use the following command line in a batch file: <sql install path>\osql -S <SQL ServerName> -U sa -P <sapwd> -Q "BACKUP DATABASE [CommServ] TO DISK = 'C:\cs.dmp'" This should create a dump file c:\cs.dmp. You can choose the folder in which the .dmp file is created. |
| 4. | In the primary CommServe, using the SQL Server Management
Studio, restore the CommServ database. Set the database into Full recovery model (See step 2 under Switching the CommServe from Primary to Standby in Case of failures) |
See the SQL Server Management Studio help for information on restoring a database. |
| 5 | Navigate to the base directory and run the CommserveDisasterRecoveryGUI
to perform the name change. This will change the CommServe host name from
the Standby CommServe name to the Primary CommServe name. In the standby CommServe, use the Name Management option from the Control Panel to Update the Clients with the Primary CommServe name Alternatively, you can update the DNS entry to change IP address of the primary computer to point to the standby computer, and then use the ipconfig /flushdns command to update the clients of the CommServe name change. |
See Informing Clients of CommServe Name Change for set-by-step instructions to inform the clients of the CommServe name change. |
| 6. | In the primary CommServe, start the services. | See start Start Services on Windows for step-by-step instructions. |
| 7. | Enable the scheduled backup job for the SQL Server iDataAgent in the primary CommServe. |
